Feeding Granularity: 400mm
Production Capacity: 8-800m³/h
Applicable Range: It is widely used for product grading in mining, building materials, transportation, energy, chemical industry, etc.
E-mail:market@sinoftm.com

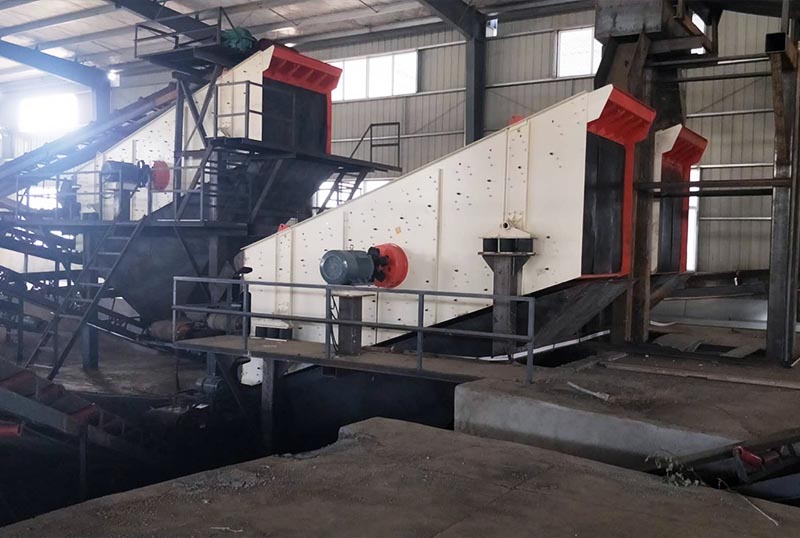

Circular vibrating screen or round vibrating screen is a multi-layer, highly efficient and new vibration screen machine that moves on a circular motion. It adopts drum eccentric shaft exciter and eccentric block to adjust the vibration amplitude, so that the screening line is long and the screening specifications are more. Since it has such features as reliable structure, strong exciting force, high screening efficiency, low vibration noise, long service life, convenient repair and safe use, circular vibrating screen is widely used for the product classification in mine, building material, transportation, energy and chemistry.
Circular motion vibrating screen is mainly composed of screening box, exciter, hanging device and electromotor. The electromotor drives the principal axis of the exciter to rotate through v-shaped belt, and under the centrifugal inertia force of the unbalanced materials on the exciter, the screen box will gain vibration and it can gain different vibration amplitudes through changing the eccentric block of the exciter. It can be divided into block type and hang type. It is often slantly installed with an angle of 15°~30°to accelerate the discharging.
1. The strong vibration of the screen box reduces the phenomenon that the materials block the screen hole, so that the circular vibrating screen has high screening efficiency and production efficiency.
2. The circular motion vibratory screener has simple structure and the dismantling and changing of the screen surface is convenient.
3. The electricity consumed to screen every ton of materials is low.
Model | Sieve layer | Sieve area (㎡) | Mesh size (mm) | Max. feeding size (mm) | Processing capacity (m³/h) | Vibrating Frequency (r/min) | Double amplitude (mm) | Motor power (kw) | Sieve obliquity (°) | Sieve specification (mm) | Dimensions (L×W×H) (mm) |
2YK1230 | 2 | 7.2 | 4-50 | 200 | 12-78 | 970 | 6 | 6P 7.5 | 20 | 1200×3000 | 3430×1860×870 |
3YK1230 | 3 | 10.8 | 4-50 | 200 | 13-80 | 970 | 6 | 6P 7.5 | 20 | 1200×3000 | 3570×1860×1210 |
2YK1237 | 2 | 8.88 | 4-50 | 200 | 15-86 | 970 | 6 | 6P 7.5 | 20 | 1200×3700 | 4050×1860×870 |
3YK1237 | 3 | 13.32 | 4-50 | 200 | 16-90 | 970 | 6 | 6P 7.5 | 20 | 1200×3700 | 4270×1860×1210 |
2YK1548 | 2 | 14.4 | 5-50 | 200 | 22.5-162 | 970 | 6 | 6P 11 | 20 | 1500×4800 | 5420×2210×1230 |
3YK1548 | 3 | 21.6 | 5-50 | 200 | 22.5-162 | 970 | 6 | 6P 15 | 20 | 1500×4800 | 5660×2210×1610 |
4YK1548 | 4 | 28.8 | 5-50 | 200 | 22.5-162 | 970 | 6 | 6P 18.5 | 20 | 1500×4800 | 6230×2210×2060 |
2YK1854 | 2 | 19.44 | 5-80 | 200 | 32-312 | 970 | 6 | 6P 22 | 20 | 1800×5400 | 5960×2550×1420 |
3YK1854 | 3 | 29.16 | 5-80 | 200 | 32-312 | 970 | 6 | 6P 22 | 20 | 1800×5400 | 6260×2550×1780 |
4YK1854 | 4 | 38.88 | 5-80 | 200 | 32-336 | 970 | 6 | 6P 22 | 20 | 1800×5400 | 6830×2550×2160 |
2YK2160 | 2 | 25.2 | 5-100 | 200 | 50-475 | 970 | 6 | 6P 30 | 20 | 2100×6000 | 6720×2840×1530 |
3YK2160 | 3 | 37.8 | 5-100 | 200 | 50-475 | 970 | 6 | 6P 30 | 20 | 2100×6000 | 7030×2840×1910 |
4YK2160 | 4 | 50.4 | 5-100 | 200 | 50-497 | 970 | 6 | 6P 37 | 20 | 2100×6000 | 7300×2840×2380 |
2YK2460 | 2 | 28.8 | 5-100 | 200 | 65-550 | 970 | 6 | 6P 30 | 20 | 2400×6000 | 7020×3140×1530 |
3YK2460 | 3 | 43.2 | 5-100 | 200 | 70-620 | 970 | 6 | 6P 37 | 20 | 2400×6000 | 7300×3140×1910 |
4YK2460 | 4 | 57.6 | 5-100 | 200 | 80-680 | 970 | 6 | 6P 45 | 20 | 2400×6000 | 7600×3140×2380 |
2YK2873 | 2 |
39.2 |
5-100 | 200 | 70-680 | 750 | 6 | 6P 37 | 20 | 2800×6440 | 7600×4320×1620 |
3YK2873 | 3 | 58.8 | 5-100 | 200 | 80-720 | 750 | 6 | 6P 45 | 20 | 2800×6440 | 7800×4320×2120 |
4YK2873 | 4 | 58.8 | 5-100 | 200 | 90-950 | 750 | 6 | 6P 55 | 20 | 2800×6440 | 7800×4320×2120 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Circular vibrating screen or round vibrating screen is a multi-layer, highly efficient and new vibration screen machine that moves on a circular motion. It adopts drum eccentric shaft exciter and eccentric block to adjust the vibration amplitude, so that the screening line is long and the screening specifications are more. Since it has such features as reliable structure, strong exciting force, high screening efficiency, low vibration noise, long service life, convenient repair and safe use, circular vibrating screen is widely used for the product classification in mine, building material, transportation, energy and chemistry.
Circular motion vibrating screen is mainly composed of screening box, exciter, hanging device and electromotor. The electromotor drives the principal axis of the exciter to rotate through v-shaped belt, and under the centrifugal inertia force of the unbalanced materials on the exciter, the screen box will gain vibration and it can gain different vibration amplitudes through changing the eccentric block of the exciter. It can be divided into block type and hang type. It is often slantly installed with an angle of 15°~30°to accelerate the discharging.
1. The strong vibration of the screen box reduces the phenomenon that the materials block the screen hole, so that the circular vibrating screen has high screening efficiency and production efficiency.
2. The circular motion vibratory screener has simple structure and the dismantling and changing of the screen surface is convenient.
3. The electricity consumed to screen every ton of materials is low.
Model | Max. feeding size(mm) | Processing capacity(m³/h) |
2YK1230 | 200 | 12-78 |
3YK1230 | 200 | 13-80 |
2YK1237 | 200 | 15-86 |
3YK1237 | 200 | 16-90 |
2YK1548 | 200 | 22.5-162 |
3YK1548 | 200 | 22.5-162 |
4YK1548 | 200 | 22.5-162 |
2YK1854 | 200 | 32-312 |
3YK1854 | 200 | 32-312 |
4YK1854 | 200 | 32-336 |
2YK2160 | 200 | 50-475 |
3YK2160 | 200 | 50-475 |
4YK2160 | 200 | 50-497 |
2YK2460 | 200 | 65-550 |
3YK2460 | 200 | 70-620 |
4YK2460 | 200 | 80-680 |
2YK2873 | 200 | 70-680 |
3YK2873 | 200 | 80-720 |
4YK2873 | 200 | 90-950 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
